1.1 Intel SIMD Development#

SIMD technology on Intel platforms has undergone a series of developments:

• MMX (MultiMedia eXtensions): 1997, introduced 64-bit registers.
• SSE (Streaming SIMD Extensions): 1999, introduced 128-bit registers.
• SSE2: 2000
• SSE3: 2004
• SSSE3: 2006
• SSE4.1: 2006
• SSE4.2
• AVX (Advanced Vector Extensions): 2011, extended to 256-bit registers.
• AVX2: 2013
• AVX-512: 2016, extended to 512-bit registers.

[Image of Intel SIMD Development History Diagram]

1.2 ARM SIMD Technology#

ARM platforms also have their own SIMD extensions:

• Neon: Supports 64-bit and 128-bit operations.
• Helium (MVE - M-Profile Vector Extension): Provides more instructions.
• SVE (Scalable Vector Extension): Vector length can scale from 128 bits to 2048 bits.
• SVE2: Enhanced version of SVE.

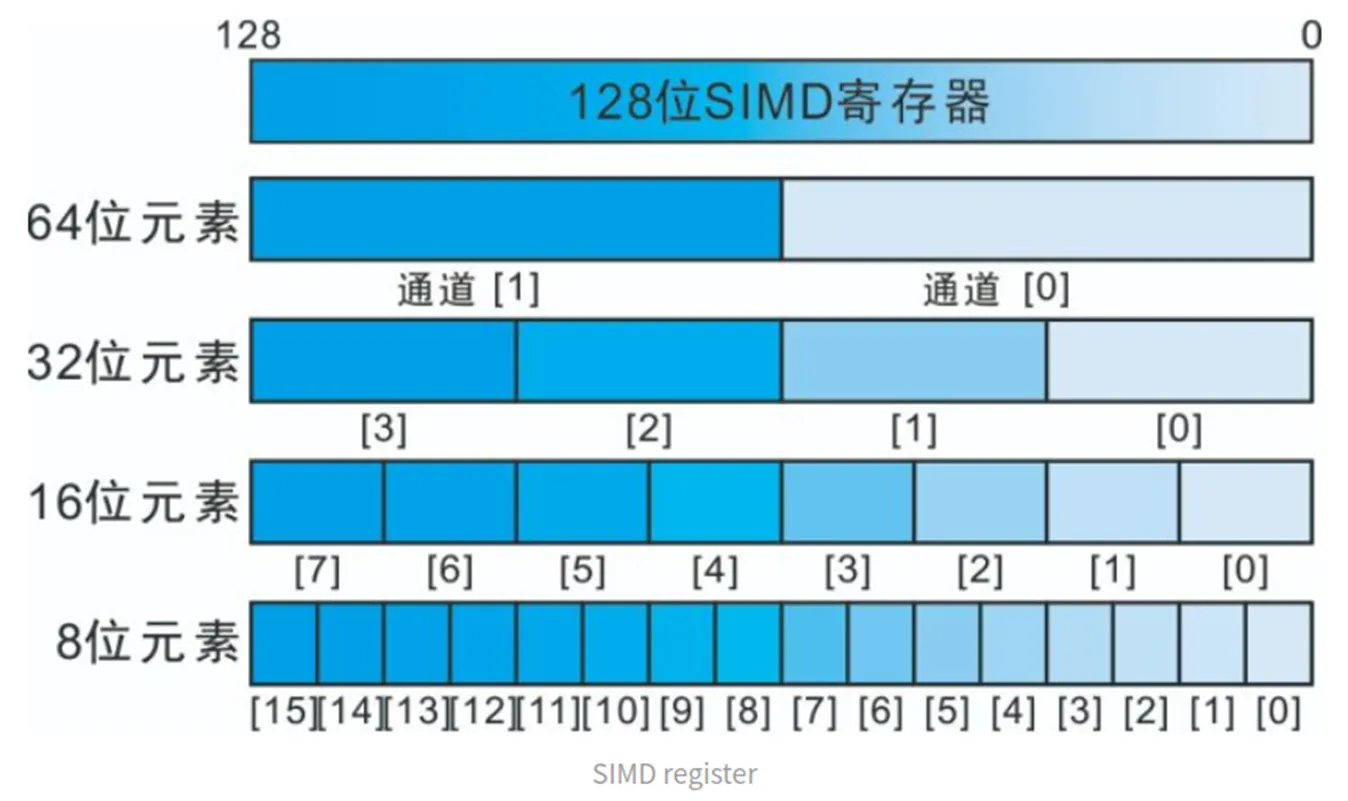

[Image of ARM SIMD Register Diagram]

2.1 Intel Intrinsics#

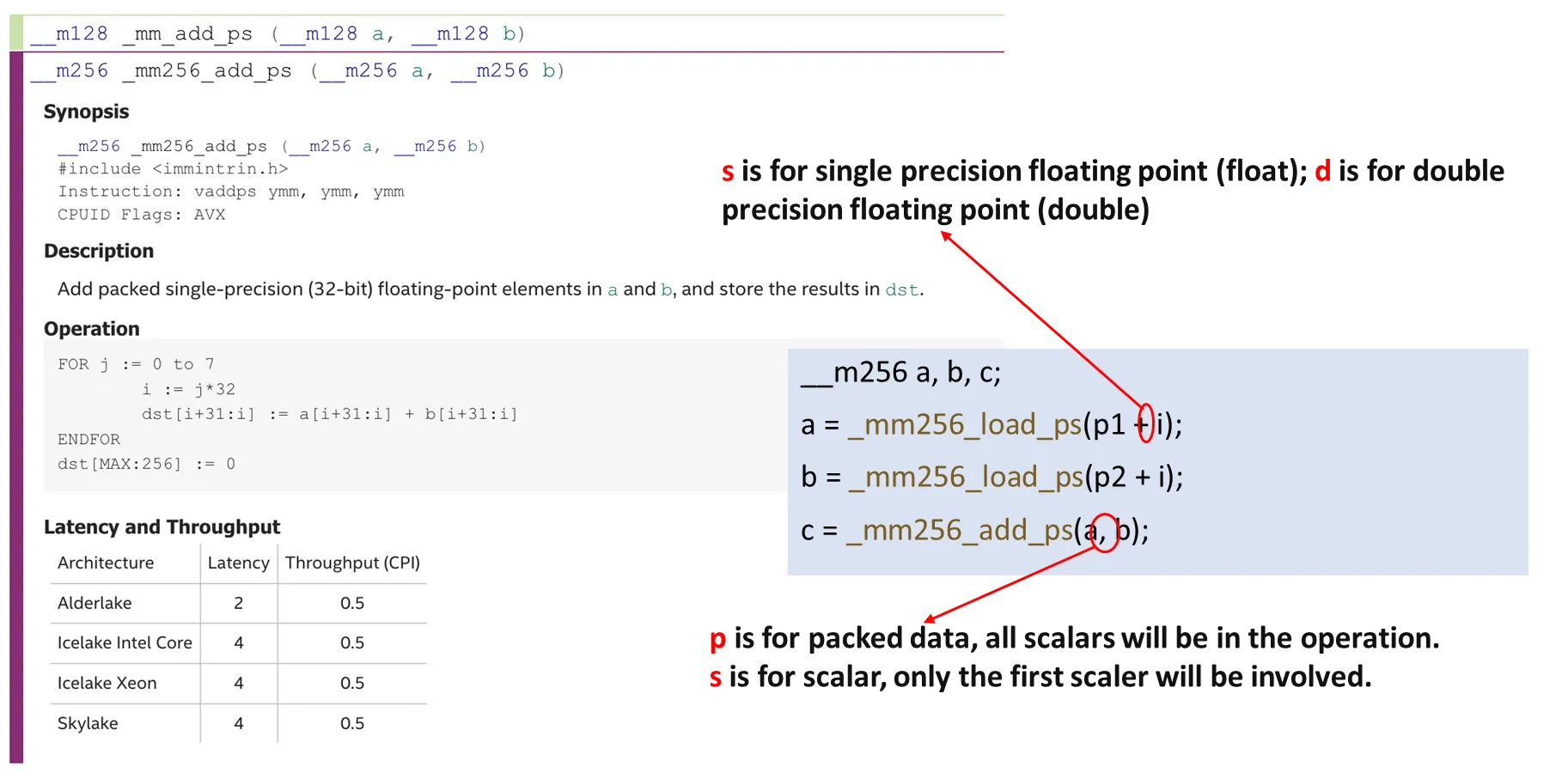

• Intel Intrinsics Guide: https://www.intel.com/content/www/us/en/docs/intrinsics-guide/index.html

  • You can search this website for specific intrinsic functions, e.g., _mm256_load_ps.

• Common Operations:



  • Load Data: Load data from memory into SIMD registers.

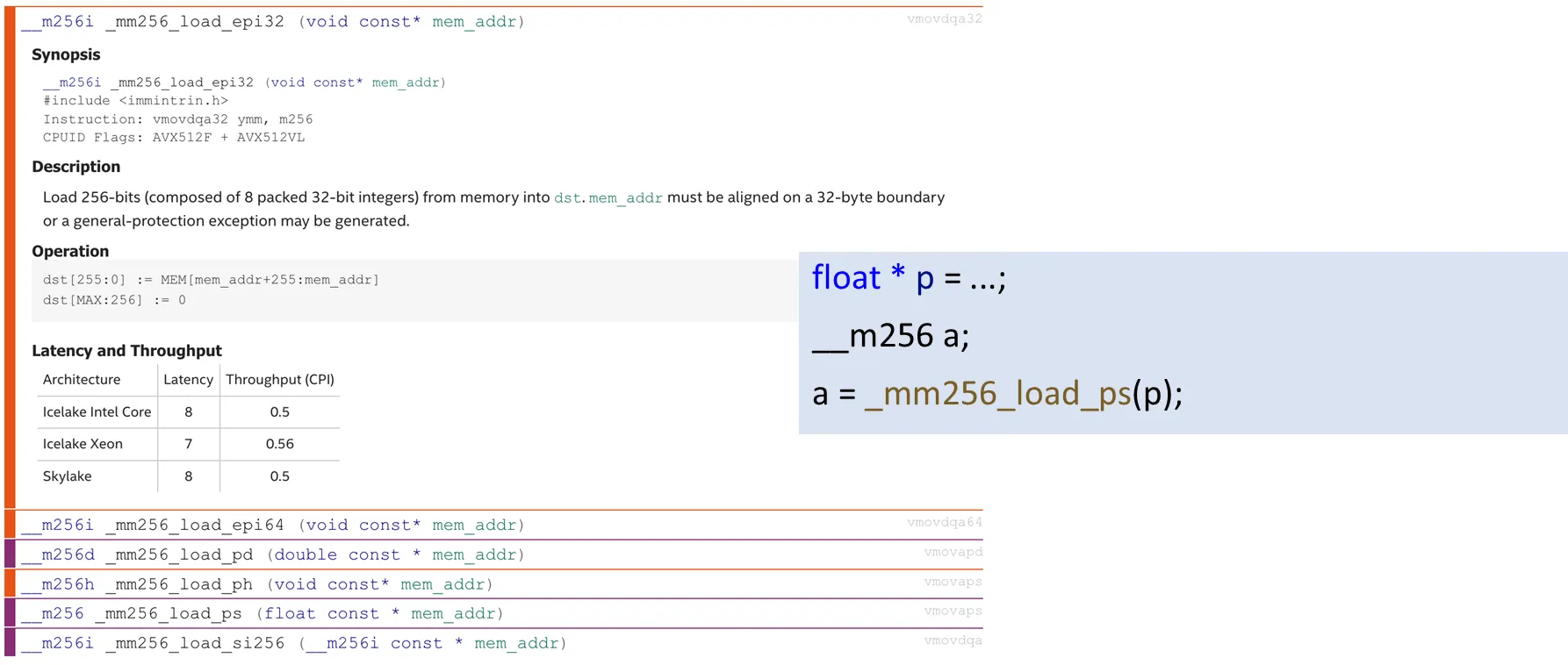

    • __m256 a = _mm256_load_ps(float *mem_addr); (for aligned memory)

      for(size_t i=0;i<n;i+=8){
          a=_mm256_load_ps(p1+i);
          b=_mm256_load_ps(p2+i);
          //_loadu here is for unaligned memeory

          c=_mm256_load_ps(c,_mm256_mul_ps(a,b));
      }
      _mm256_load_ps(sum,c);
      //_storeu here is for unaligned memory

    • __m256 a = _mm256_loadu_ps(float *mem_addr); (for unaligned memory)

      size_t nSize=200000009;
      //float *p1 =new float[nSize]();
      //float *p2 =new float[nSize]();

      //256bits align ,C++17 standard
      float *p1=static_cast<float*>(aligned_alloc(256,nSize*sizeof(float)));
      float *p2=static_cast<float*>(aligned_alloc(256,nSize*sizeof(float)));
      float result=0.0f;
      //Aligned memory allocation

  • Arithmetic Operations (Add, Multiply, etc.):



    • __m256 c = _mm256_add_ps(__m256 a, __m256 b);
    • __m256 c = _mm256_mul_ps(__m256 a, __m256 b);

  • Store Data: Store data from SIMD registers back to memory.



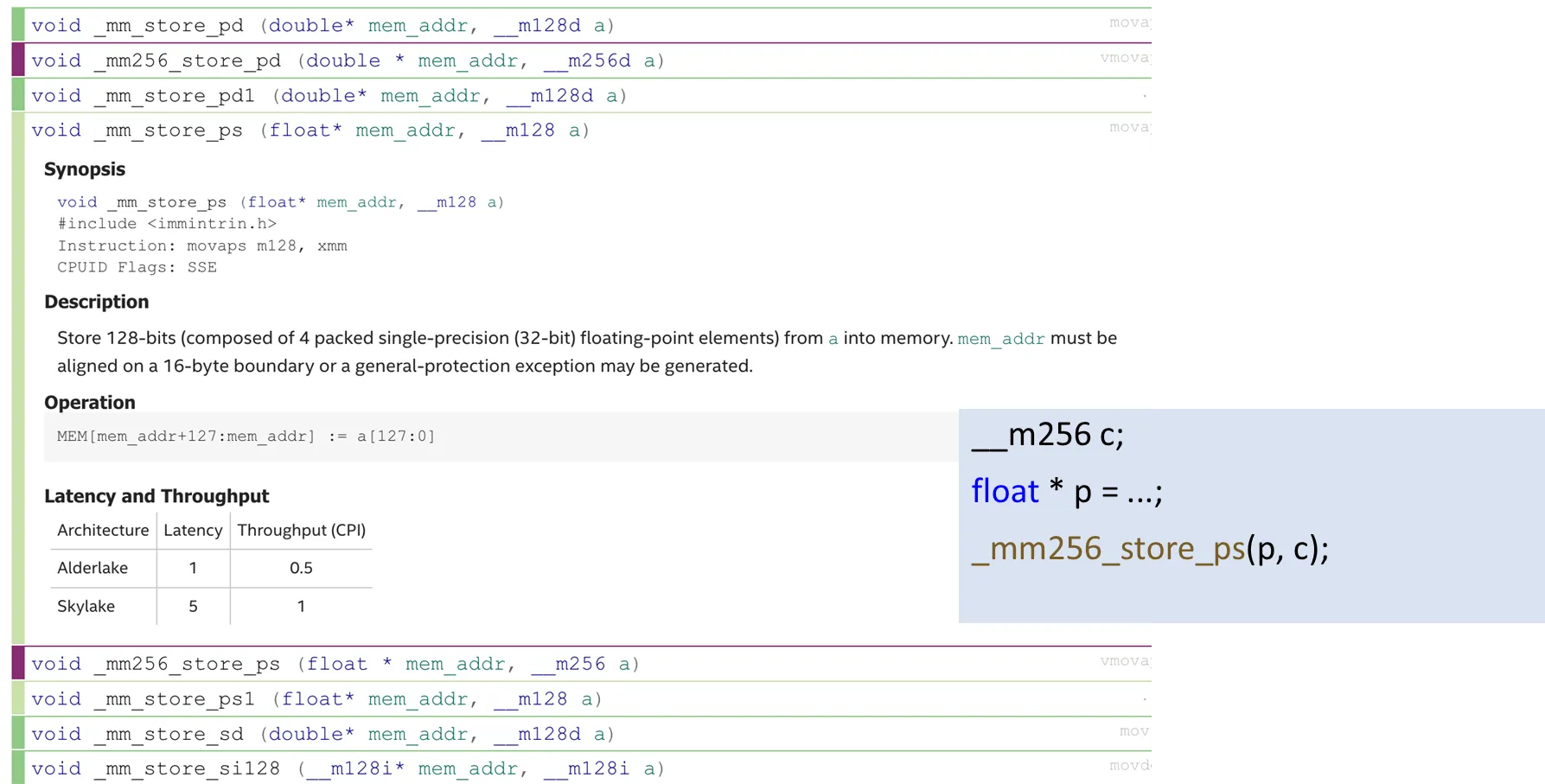

    • _mm256_store_ps(float *mem_addr, __m256 a); (for aligned memory)
    • _mm256_storeu_ps(float *mem_addr, __m256 a); (for unaligned memory)

• Naming Conventions:

  • ps: Packed Single-precision (float)
  • pd: Packed Double-precision (double)

2.2 ARM Neon Intrinsics#

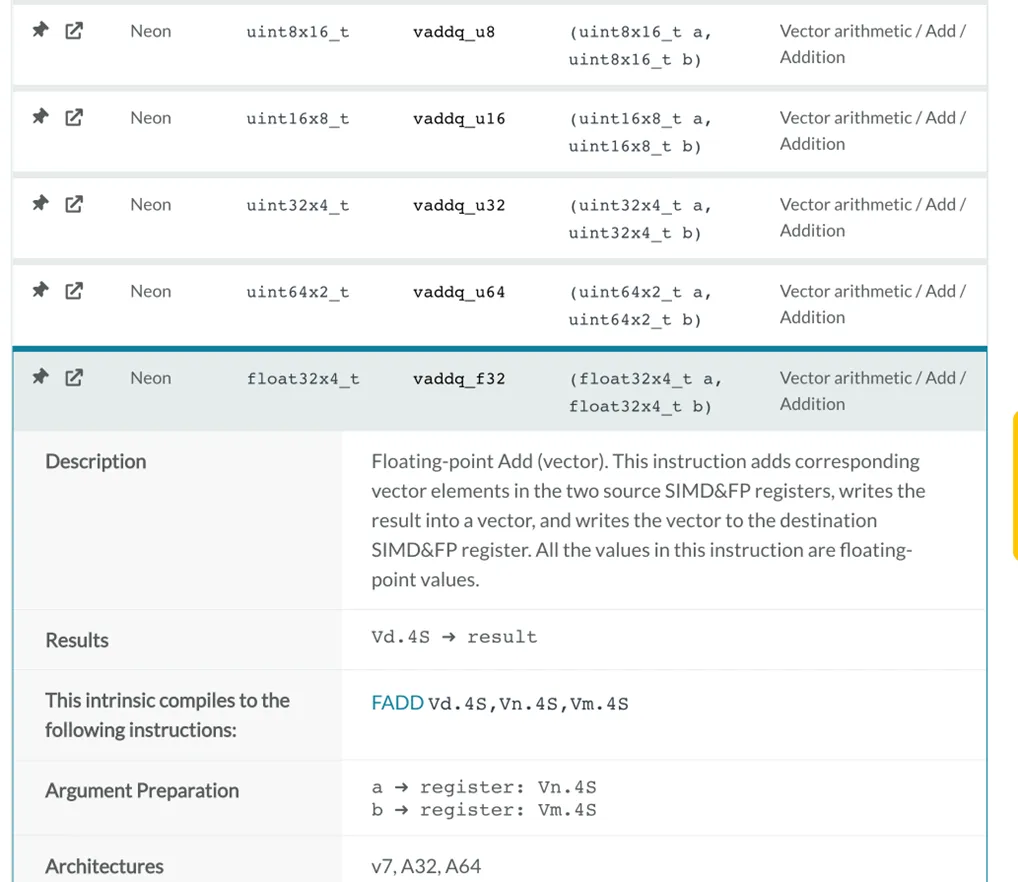

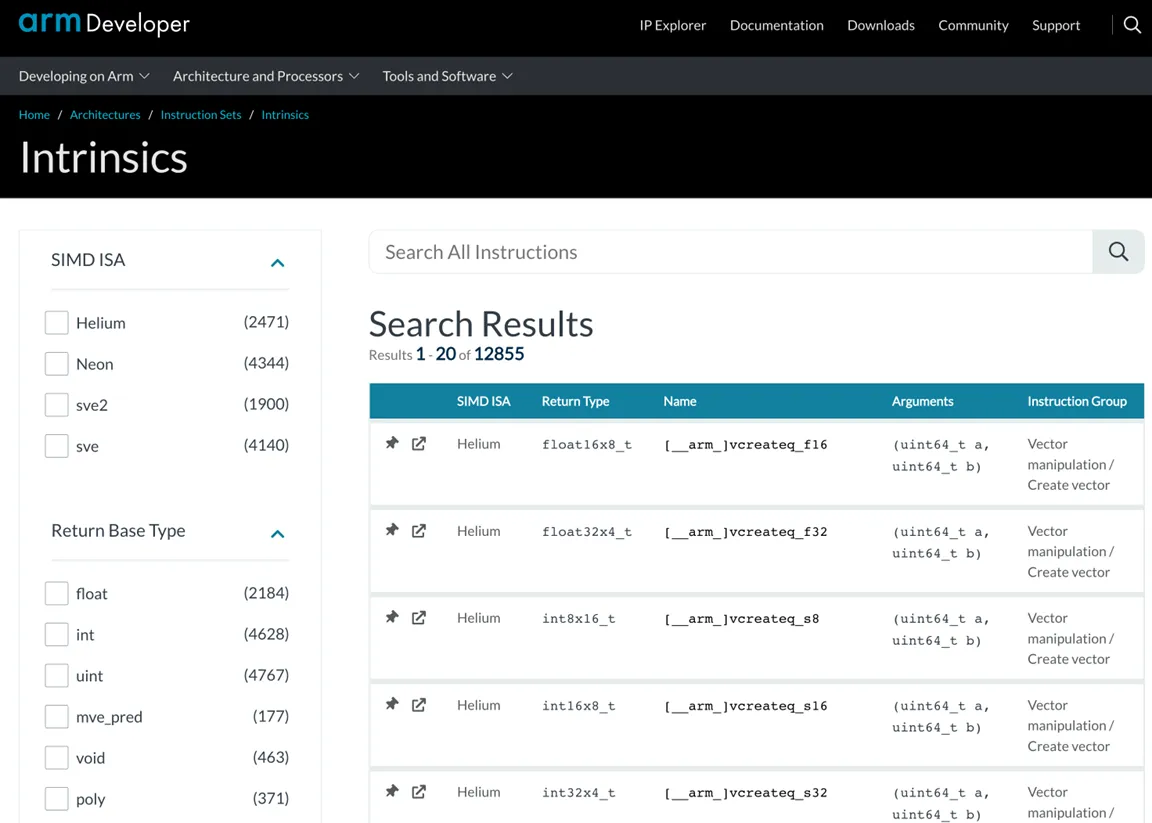

• ARM Intrinsics Guide: https://developer.arm.com/architectures/instruction-sets/intrinsics/

• Neon intrinsics operate on 128-bit registers.

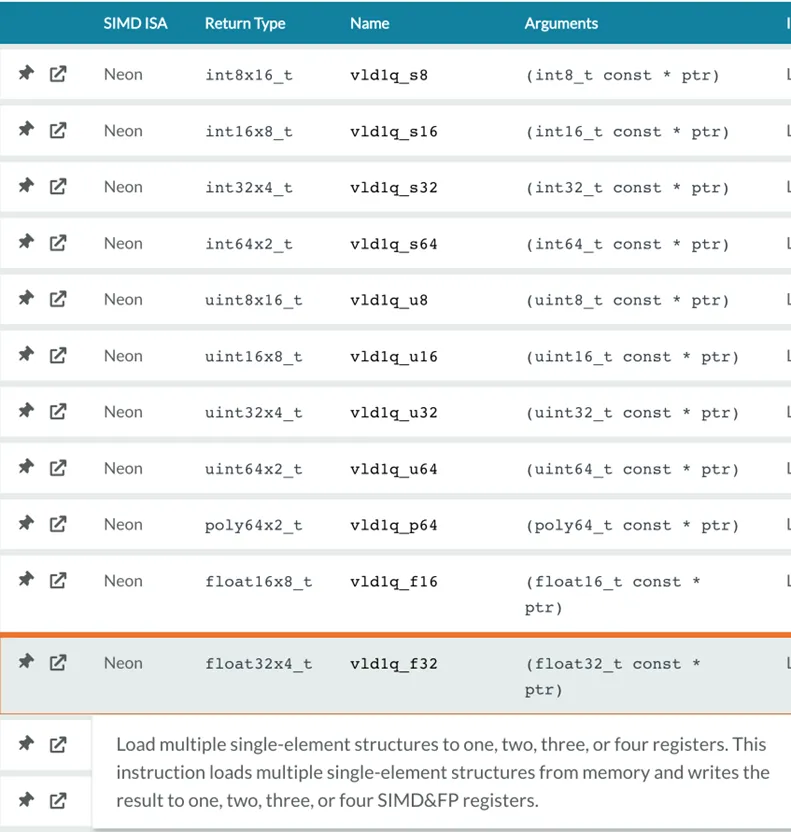

• Common Operations (example with float32x4_t, representing 4 32-bit floats):



  • Load Data: float32x4_t vec = vld1q_f32(const float32_t *ptr);



  • Arithmetic Operations: float32x4_t sum = vaddq_f32(float32x4_t a, float32x4_t b);

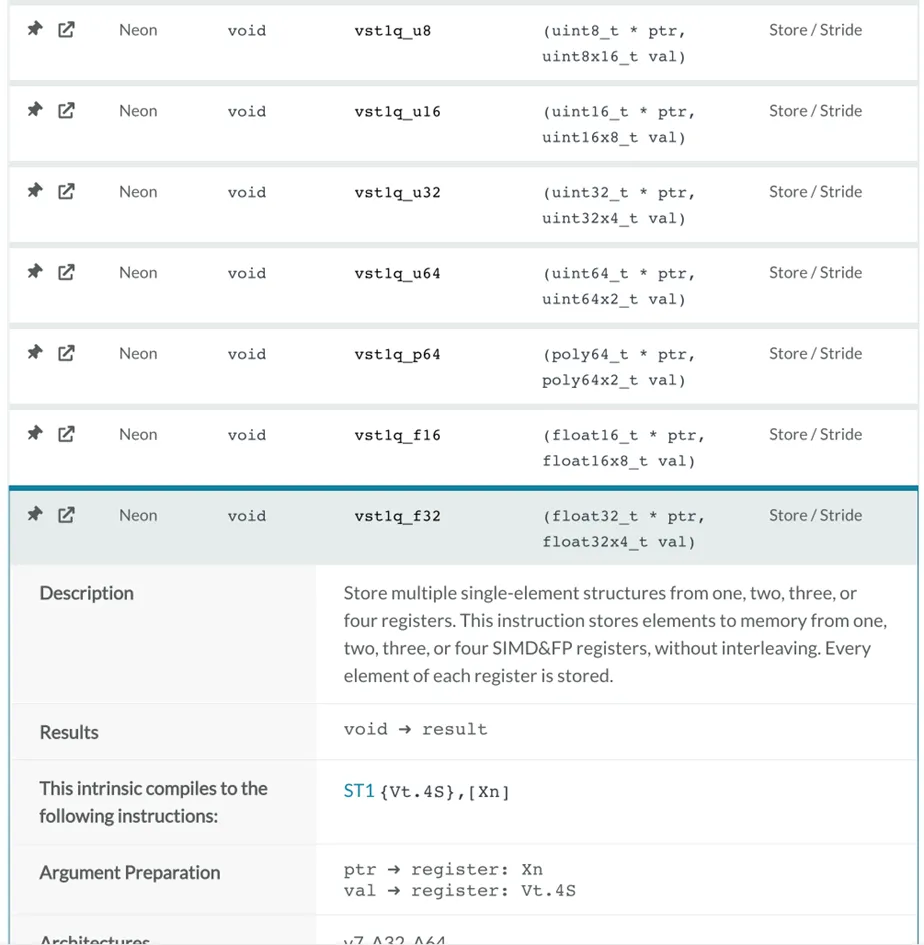

  • Store Data: vst1q_f32(float32_t *ptr, float32x4_t vec);

3.1 For Intel CPUs (AVX2)#

• Enable AVX2 Support:

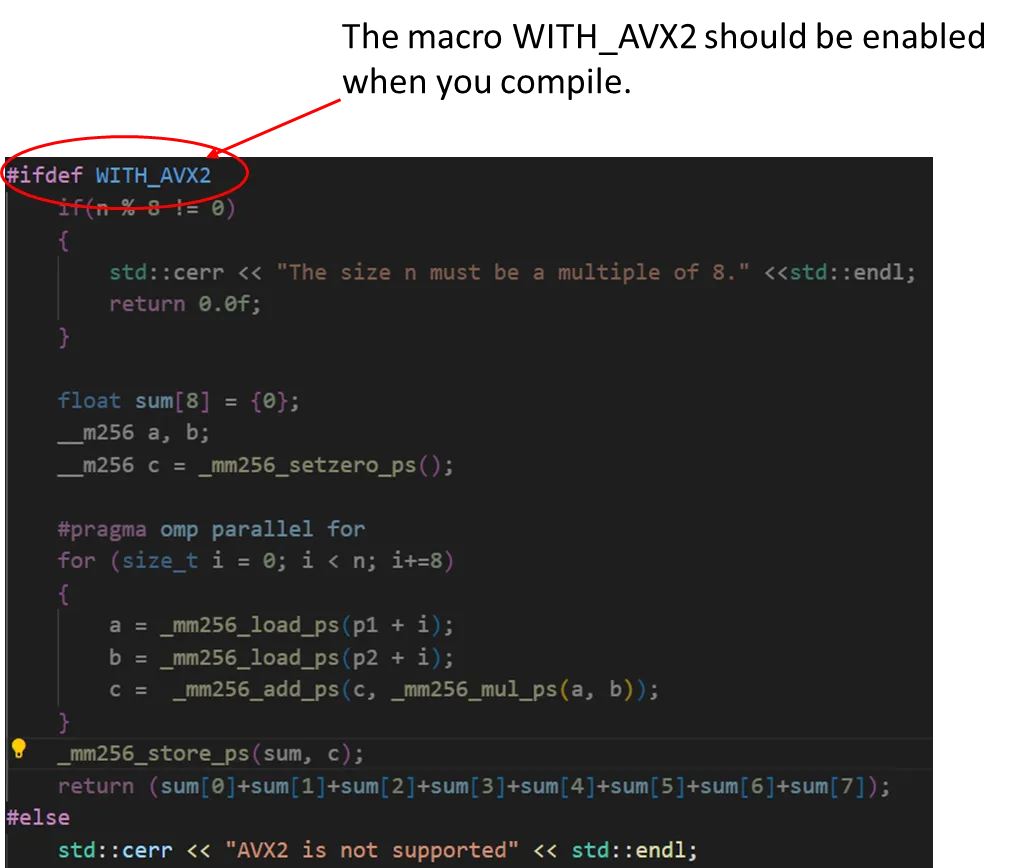

  • Check macro definition in code:

    #ifdef WITH_AVX2
    // AVX2 specific code
    #else
    std::cerr << "AVX2 is not supported" << std::endl;
    #endif

  • Define macro at compile time: g++ ... -DWITH_AVX2 ...

  • Use compiler option to enable AVX2 instruction set: g++ ... -mavx2 ...

  • If you encounter “inlining failed” or segmentation faults, ensure both -DWITH_AVX2 and -mavx2 are used correctly.

• Memory Alignment:

  • AVX instructions (like _mm256_load_ps) often require memory addresses to be aligned to specific boundaries (e.g., 32-byte alignment for AVX2).

  • If memory is unaligned, use _mm256_loadu_ps and _mm256_storeu_ps.

  • Allocate aligned memory (C++17 and later):

    // 256 bits aligned, C++17 standard
    float * p1 = static_cast<float*>(aligned_alloc(32, nSize * sizeof(float)));

    NOTE

    The first argument to aligned_alloc is the alignment in bytes,the second is the total number of bytes to allocate, which must be a multiple of the first.

    Requires <cstdlib>.

    Must be freed with free(p1);

• Compiler Optimization: Use the -O3 optimization level for better performance.

3.2 For ARM CPUs (NEON)#

• Enable NEON Support:

  • ARM compilers usually enable NEON by default (e.g., when compiling for specific ARMv7/ARMv8 architectures).
  • Check compiler documentation for specific flags, e.g., -mfpu=neon or -march=armv8-a+simd.
  • Include header file: #include <arm_neon.h>

• Example Compilation Command (General if the compiler and target platform support NEON):

  g++ *.cpp -o main
  ./main



3.3 Compilation Tips#

• If compiling the example code directly with g++ *.cpp -o main:

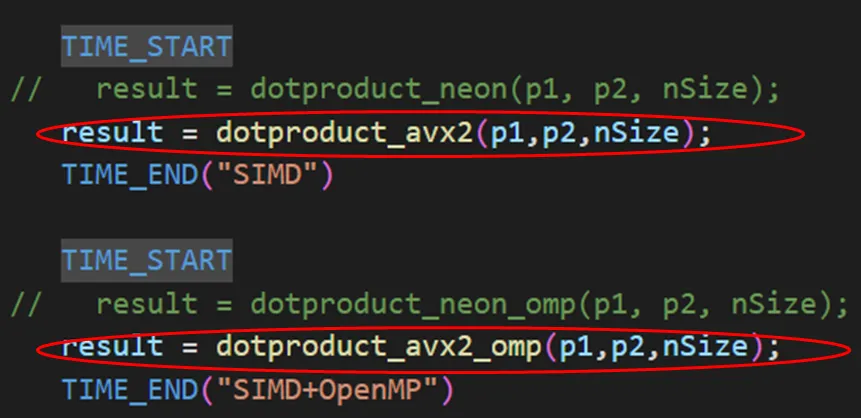

  • When running on an Intel CPU, ensure main.cpp calls dotproduct_avx2() instead of dotproduct_neon().

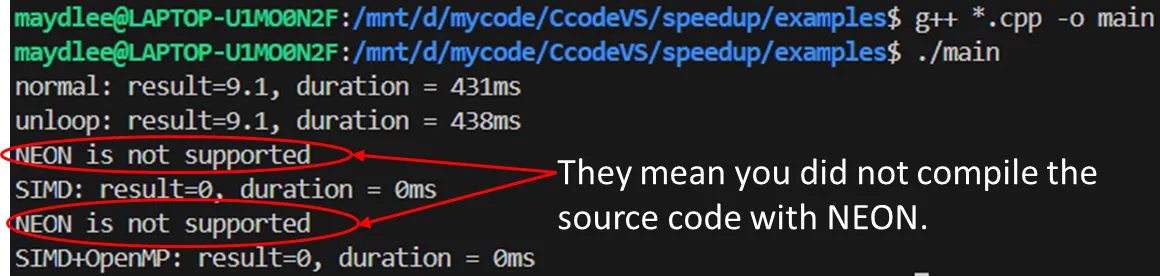

  • Outputting “NEON is not supported” or “AVX2 is not supported” means the respective SIMD instruction set was not compiled or the CPU does not support it.

• Correctly Compiling AVX2 Example:



  g++ -o main *.cpp -DWITH_AVX2 -mavx2 -O3

• OpenMP Support:

  • Include header file: #include <omp.h>
  • Add OpenMP flag at compile time: g++ ... -fopenmp ...

5.1 CMakeLists.txt Example Configuration#

cmake_minimum_required(VERSION 3.12)
project(simd_openmp_lab)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED True)

# Add source files
add_executable(my_program main.cpp matoperation.cpp)

# --- SIMD Configuration ---
# Check for AVX2 support (example, actual check might be more complex)
include(CheckCXXCompilerFlag)
CHECK_CXX_COMPILER_FLAG("-mavx2" COMPILER_SUPPORTS_AVX2)

if(COMPILER_SUPPORTS_AVX2)
    message(STATUS "AVX2 is supported by the compiler.")
    target_compile_options(my_program PRIVATE -mavx2)
    target_compile_definitions(my_program PRIVATE WITH_AVX2)
else()
    message(WARNING "AVX2 is not supported by the compiler.")
endif()

# --- OpenMP Configuration ---
find_package(OpenMP)
if(OpenMP_CXX_FOUND)
    message(STATUS "OpenMP found.")
    target_link_libraries(my_program PUBLIC OpenMP::OpenMP_CXX)
else()
    message(WARNING "OpenMP not found.")
endif()

# --- Optimization Level ---
target_compile_options(my_program PRIVATE -O3)

5.2 Build Steps#

1. Create a build directory and navigate into it: mkdir build && cd build
2. Run CMake to generate build files: cmake ..
3. Compile the project: make (or cmake --build .)
4. Run the executable: ./my_program

mkdir build && cd build
cmake ..
cmake --build #make
./my_program

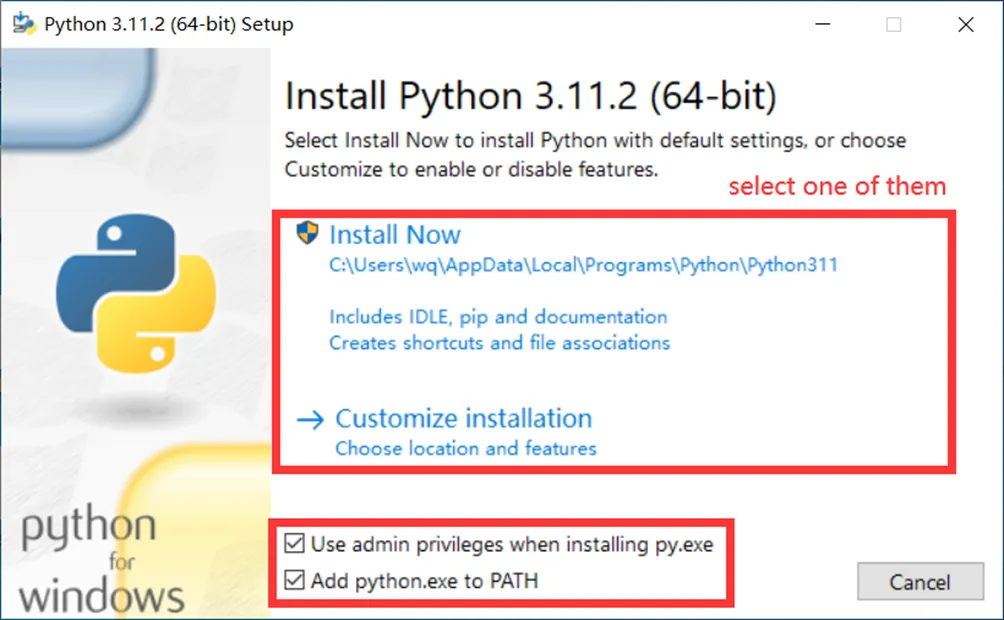

6.1 Installing Python#

• Download from the official website: https://www.python.org/downloads/

• It is recommended to check “Add python.exe to PATH” during installation.

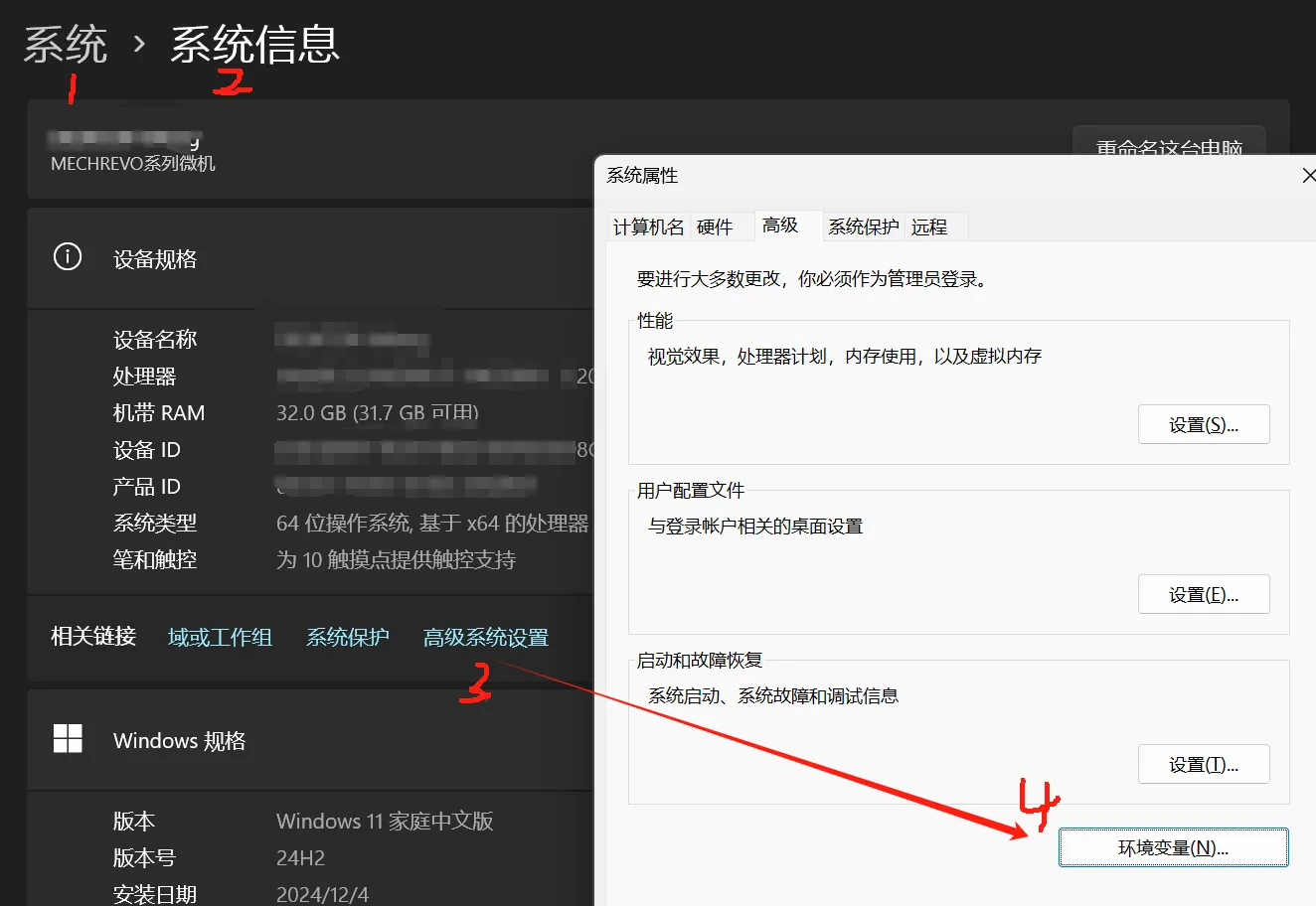

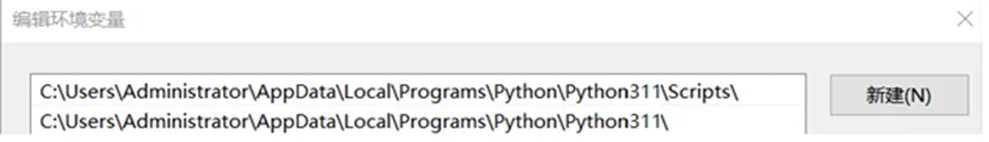

• If not checked, you need to configure environment variables manually.

  • Right click ‘my computer’ on the desktop
  • select ‘attribute’-> ‘advanced attribute’->environment variable
  • configure ‘Path’ with the path where python.exe belongs and its subdirectory ‘Scripts’





  TIP

  如果这里没有配置好\Scripts\会导致后续如果要用pip安装需要:

  cd C:\Path\Python311\Scripts
  pip install somepackage

  所以要配置子文件夹

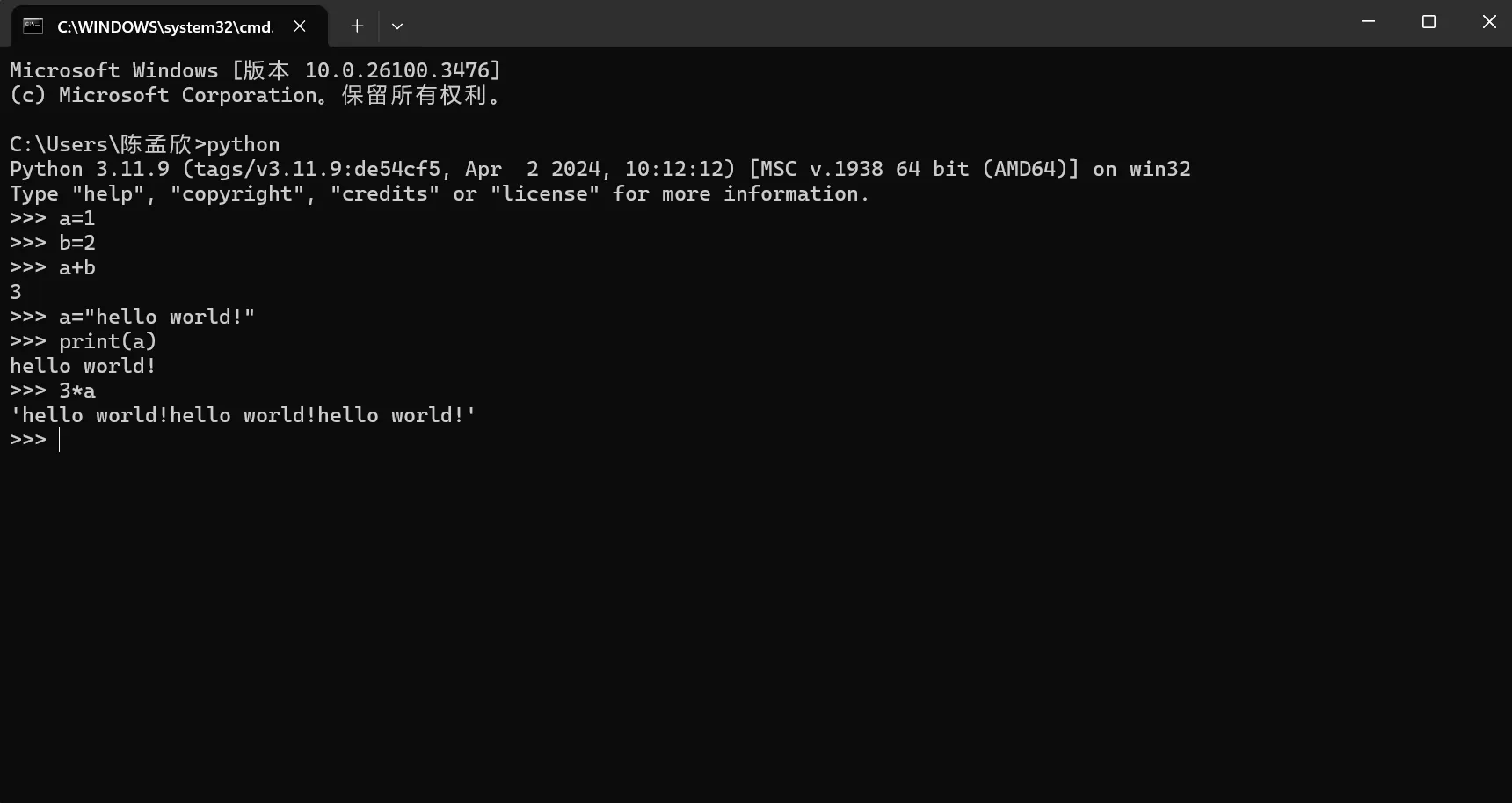

6.2 REPL (Read-Eval-Print Loop)#

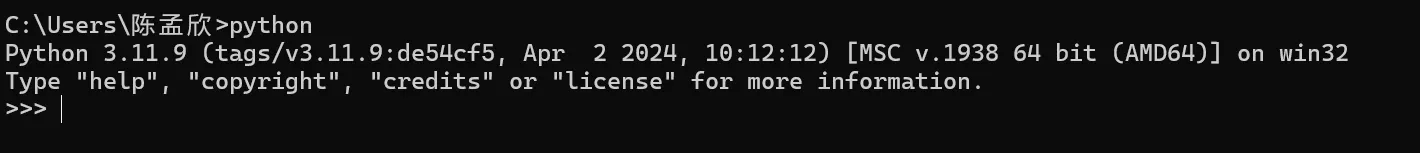

Python provides an interactive environment where you can directly input code and see the results.

python

Result:

a=1
b=2
a+b

a="hello world!"
print(a)

3*a

6.3 Basic Types and Operations#

• Numeric Types: int, float, complex
• Boolean Type: True, False
• Text Sequence Type: str
• Sequence Types: list (mutable), tuple (immutable), range
• Set Type: set
• Dictionary Type: dict
• Binary Sequence Types: bytes, bytearray

Reference from the docs

animals = ['dog', 'cat', 'bird']
animals[0] # => 'dog'
animals[0] = 'puppy'

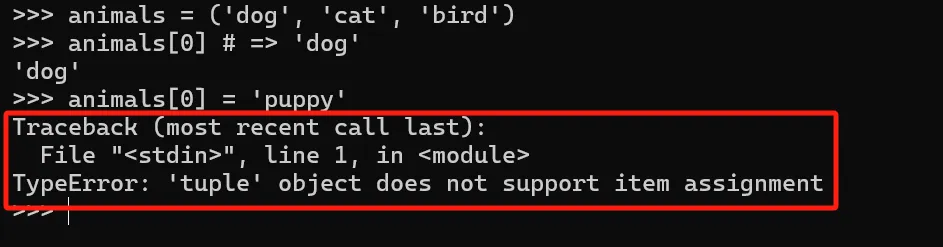

animals = ('dog', 'cat', 'bird')
animals[0] # => 'dog'
animals[0] = 'puppy'
# Traceback (most recent call last):
#    File "<stdin>", line 1, in <module>
#TypeError: 'tuple' object does not support item assignment

foo,bar=['dog','cat']
foo
bar

foo,bar=('dog','cat')
foo
bar

animals = set()
animals.add('dog')
animals	# => {'dog'}

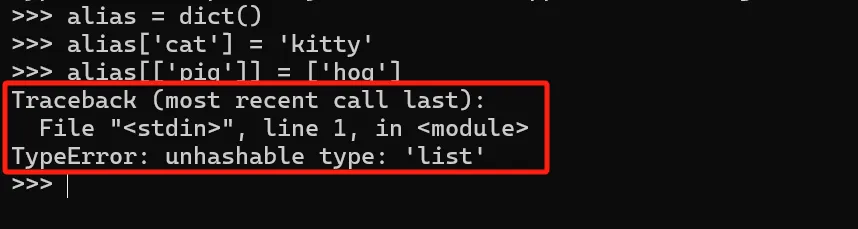

alias = dict()
alias['cat'] = 'kitty'
alias[['pig']] = ['hog']

#Traceback (most recent call last):
#    File "<stdin>", line 1, in <module>
#TypeError: 'tuple' object does not support item assignment

6.4 Mutable & Immutable Types#

• Immutable Types: Numeric, Boolean, str, tuple, bytes (content cannot be changed after creation)
• Mutable Types: list, dict, set (content can be modified)
• Only immutable types can be used as dictionary keys or set members.

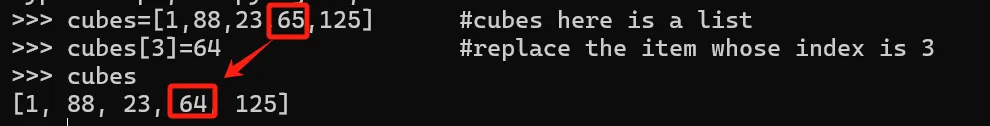

cubes=[1,88,23,65,125]      #cubes here is a list
cubes[3]=64                 #replace the item whose index is 3
cubes

6.5 Boolean Value Evaluation#

The following values are considered False:

None, False, 0, 0.0, 0j, Decimal(0), Fraction(0, 1), ”, (), [], {}, set(), range(0)

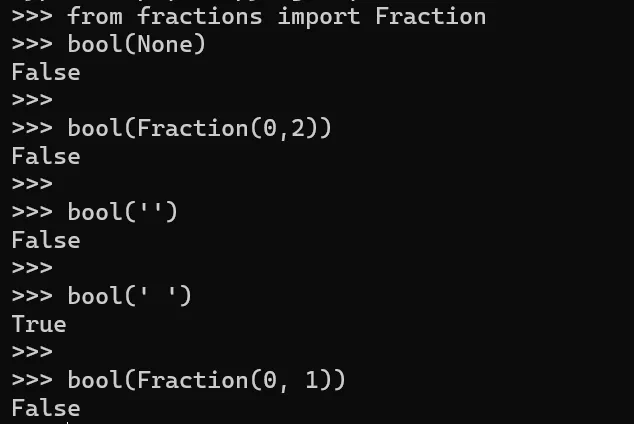

from fractions import Fraction
bool(None)

bool(Fraction(0,2))

bool('')

bool(' ')

bool(Fraction(0, 1))

Other values are generally considered True.

6.6 Control Flow#

• if Statement:

  foo = []
  if foo: # Empty list is considered False
      print(foo)
  else:
      print('foo is empty')

• for Loop:

  my_list = ['dog', 'cat', 'bird']
  for item in my_list:
      print(item)

  for index, value in enumerate(my_list):
      print(f"{index}: {value}")

  for i in range(5): # 0, 1, 2, 3, 4
      print(i, end=" ")

• while Loop:

  count = 5
  while count > 0:
      print(count, end=" ")
      count -= 1

6.7 Defining Functions#

def greet(name):
    return f"Hello, {name}!"

message = greet("World")
print(message) # Output: Hello, World!

6.8 Modules#

• Python files (.py) can be imported as modules into other Python files.
• The filename (without the .py suffix) is the module name.
• Use import module_name or from module_name import specific_function to import.
• The if __name__ == "__main__": construct is used to determine if a script is run directly or imported.

Exercise 1: Vector Addition#

Write a program to implement the addition of two floating-point vectors. The vector size should be greater than 1 million.

1. Implement using pure C/C++ code.
2. Optimize the vector addition using SIMD (AVX2 or NEON) instructions.

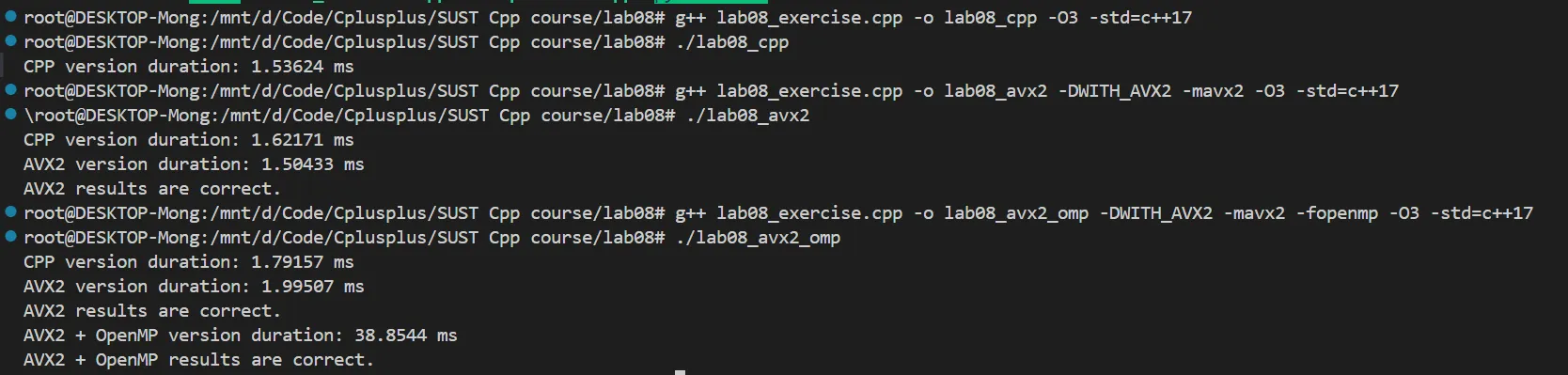

3. Compare the execution speed of the pure C/C++ version and the SIMD optimized version.
4. Try to further accelerate the SIMD version of vector addition using OpenMP. Verify the correctness of the results.

Hints:

• Initialize vectors with values like 0.f, 1.f, 2.f, ....
• Pay attention to the importance of memory alignment for SIMD.
• Use timing functions (like the <chrono> library) to measure execution time.

// Example Framework
#include <iostream>
#include <vector>
#include <chrono> // For timing
#include <numeric> // For std::iota (optional)
#include <cstdlib> // For aligned_alloc, free
#include <cmath>   // For std::abs (in result verification)

// If using AVX2
#ifdef WITH_AVX2
#include <immintrin.h>
#endif

// If using NEON
#ifdef WITH_NEON
#include <arm_neon.h>
#endif

// If using OpenMP
#ifdef _OPENMP
#include <omp.h>
#endif

const size_t VECTOR_SIZE = 2000000; // 2 million

// Function: Pure C++ vector addition
void vector_add_cpp(float* c, const float* a, const float* b, size_t n) {
    for (size_t i = 0; i < n; ++i) {
        c[i] = a[i] + b[i];
    }
}

// Function: AVX2 vector addition (Example)
#ifdef WITH_AVX2
void vector_add_avx2(float* c, const float* a, const float* b, size_t n) {
    size_t n_aligned_part = (n / 8) * 8; // Process the part divisible by 8

    for (size_t i = 0; i < n_aligned_part; i += 8) {
        __m256 va = _mm256_loadu_ps(a + i); // Use loadu for potentially unaligned memory
        __m256 vb = _mm256_loadu_ps(b + i);
        __m256 vc = _mm256_add_ps(va, vb);
        _mm256_storeu_ps(c + i, vc);      // Use storeu
    }
    // Handle the remaining elements if n is not a multiple of 8
    for (size_t i = n_aligned_part; i < n; ++i) {
        c[i] = a[i] + b[i];
    }
}

// Function: AVX2 + OpenMP vector addition (Example)
void vector_add_avx2_omp(float* c, const float* a, const float* b, size_t n_orig) {
    size_t n_parallel_part = (n_orig / 8) * 8; // Part to be processed in parallel

    #pragma omp parallel for
    for (size_t i = 0; i < n_parallel_part; i += 8) {
        __m256 va = _mm256_loadu_ps(a + i);
        __m256 vb = _mm256_loadu_ps(b + i);
        __m256 vc = _mm256_add_ps(va, vb);
        _mm256_storeu_ps(c + i, vc);
    }
    // Handle the remaining elements serially after the parallel loop
    for (size_t i = n_parallel_part; i < n_orig; ++i) {
        c[i] = a[i] + b[i];
    }
}
#endif


// ... (NEON version implementation would be similar) ...

int main() {
    // --- Memory Allocation ---
    // Consider alignment: AVX2 typically needs 32-byte alignment (256-bit)
    // C++17 aligned_alloc
    float* vec_a = static_cast<float*>(aligned_alloc(32, VECTOR_SIZE * sizeof(float)));
    float* vec_b = static_cast<float*>(aligned_alloc(32, VECTOR_SIZE * sizeof(float)));
    float* vec_c_cpp = static_cast<float*>(aligned_alloc(32, VECTOR_SIZE * sizeof(float)));
    float* vec_c_simd = static_cast<float*>(aligned_alloc(32, VECTOR_SIZE * sizeof(float)));
    float* vec_c_simd_omp = static_cast<float*>(aligned_alloc(32, VECTOR_SIZE * sizeof(float)));

    if (!vec_a || !vec_b || !vec_c_cpp || !vec_c_simd || !vec_c_simd_omp) {
        std::cerr << "Memory allocation failed!" << std::endl;
        // Clean up any successfully allocated memory
        if(vec_a) free(vec_a);
        if(vec_b) free(vec_b);
        if(vec_c_cpp) free(vec_c_cpp);
        if(vec_c_simd) free(vec_c_simd);
        if(vec_c_simd_omp) free(vec_c_simd_omp);
        return 1;
    }

    // --- Initialize Vectors ---
    for (size_t i = 0; i < VECTOR_SIZE; ++i) {
        vec_a[i] = static_cast<float>(i);
        vec_b[i] = static_cast<float>(VECTOR_SIZE - 1 - i);
    }

    // --- Pure C++ Version ---
    auto start_cpp = std::chrono::high_resolution_clock::now();
    vector_add_cpp(vec_c_cpp, vec_a, vec_b, VECTOR_SIZE);
    auto end_cpp = std::chrono::high_resolution_clock::now();
    std::chrono::duration<double, std::milli> duration_cpp = end_cpp - start_cpp;
    std::cout << "CPP version duration: " << duration_cpp.count() << " ms" << std::endl;

    // --- SIMD Version (AVX2 Example) ---
#ifdef WITH_AVX2
    auto start_avx2 = std::chrono::high_resolution_clock::now();
    vector_add_avx2(vec_c_simd, vec_a, vec_b, VECTOR_SIZE);
    auto end_avx2 = std::chrono::high_resolution_clock::now();
    std::chrono::duration<double, std::milli> duration_avx2 = end_avx2 - start_avx2;
    std::cout << "AVX2 version duration: " << duration_avx2.count() << " ms" << std::endl;

    // Verify results (simple sampling)
    bool avx2_correct = true;
    for(size_t i=0; i<VECTOR_SIZE; ++i) {
        if (std::abs(vec_c_cpp[i] - vec_c_simd[i]) > 1e-5) { // Use tolerance for floating-point comparison
            avx2_correct = false;
            std::cerr << "AVX2 Mismatch at index " << i << ": cpp=" << vec_c_cpp[i] << ", simd=" << vec_c_simd[i] << std::endl;
            break;
        }
    }
    std::cout << "AVX2 results are " << (avx2_correct ? "correct." : "INCORRECT!") << std::endl;


    // --- SIMD + OpenMP Version (AVX2 Example) ---
    #ifdef _OPENMP
    auto start_avx2_omp = std::chrono::high_resolution_clock::now();
    vector_add_avx2_omp(vec_c_simd_omp, vec_a, vec_b, VECTOR_SIZE);
    auto end_avx2_omp = std::chrono::high_resolution_clock::now();
    std::chrono::duration<double, std::milli> duration_avx2_omp = end_avx2_omp - start_avx2_omp;
    std::cout << "AVX2 + OpenMP version duration: " << duration_avx2_omp.count() << " ms" << std::endl;

    bool avx2_omp_correct = true;
    for(size_t i=0; i<VECTOR_SIZE; ++i) {
        if (std::abs(vec_c_cpp[i] - vec_c_simd_omp[i]) > 1e-5) {
            avx2_omp_correct = false;
            std::cerr << "AVX2+OMP Mismatch at index " << i << ": cpp=" << vec_c_cpp[i] << ", simd_omp=" << vec_c_simd_omp[i] << std::endl;
            break;
        }
    }
    std::cout << "AVX2 + OpenMP results are " << (avx2_omp_correct ? "correct." : "INCORRECT!") << std::endl;
    #endif // _OPENMP
#endif // WITH_AVX2

    // ... (NEON version tests would be similar) ...

    // --- Free Memory ---
    free(vec_a);
    free(vec_b);
    free(vec_c_cpp);
    free(vec_c_simd);
    free(vec_c_simd_omp);

    return 0;
}

Example Compilation Commands (GCC/Clang, assuming filename lab08_exercise.cpp):

• Pure C++:

  g++ lab08_exercise.cpp -o lab08_cpp -O3 -std=c++17

• AVX2:

  g++ lab08_exercise.cpp -o lab08_avx2 -DWITH_AVX2 -mavx2 -O3 -std=c++17

• AVX2 + OpenMP:

  g++ lab08_exercise.cpp -o lab08_avx2_omp -DWITH_AVX2 -mavx2 -fopenmp -O3 -std=c++17

  For Clang, OpenMP might require linking additional libraries, e.g., -lomp

Questions for Thought:

• How much performance improvement did SIMD optimization provide?
• How much additional performance improvement can OpenMP provide on top of SIMD? Why?
• What is the impact of memory alignment on SIMD performance? What happens if you don’t use aligned memory or loadu/storeu instructions?

My thoughts:

CC BY NC SA (Content adapted from course materials)
