1.1 Definition and “has-a” Relationship#

Composition occurs when a class (the container class) includes an object of another class as one of its members.

class Engine {
public:
    Engine(int nc) : cylinder(nc) { std::cout << "Constructor:Engine(int)\n"; }
    void start() { std::cout << getCylinder() << " cylinder engine started\n"; }
    int getCylinder() { return cylinder; }
    ~Engine() { std::cout << "Destructor:~Engine()\n"; }
private:
    int cylinder;
};

class Car {
private:
    Engine eng; // Car "has-an" Engine
public:
    Car(int n = 4) : eng(n) { std::cout << "Constructor:Car(int)\n"; } // Initialize member object via initializer list
    void start() {
        std::cout << "car with " << eng.getCylinder() << " cylinder engine started\n";
        eng.start();
    }
    ~Car() { std::cout << "Destructor:~Car()\n"; }
};

In the example above, the Car class contains an Engine object named eng.

1.2 Construction and Destruction Order of Member Objects#

Construction Order: When an object of the container class is created:

1. First, the constructors of the member objects are called in the order they are declared within the container class. Arguments for the member objects’ constructors are typically provided in the container class’s constructor initializer list.
2. Then, the body of the container class’s own constructor is executed.

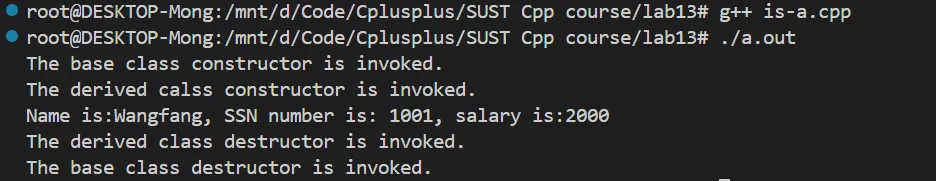

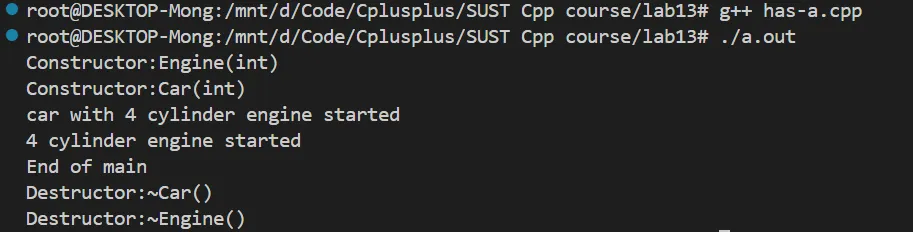

Images	is-a	has-a
Output
Order	1.~derived class() 2.~base class()	1.~Car class() 2.~Enginec class()
Differ	Inheritance	Composition

Destruction Order: When an object of the container class is destroyed, the order is reversed:

1. First, the body of the container class’s own destructor is executed.
2. Then, the destructors of the member objects are called in the reverse order of their declaration within the container class.

TIP

【重用接口，实现的重用】

对象的思想是一种很方便的工具。它允许我们将数据和功能通过概念封装在一起，使得我们能描述合适的问题空间思想，而不是被强调使用底层机器的用于。通过使用class关键字，这些概念呗表示为程序设计语言中的基本单元。

然而，克服许多困难去创建一个类，并随后强制性地创造一个有类似功能的全新的类，似乎并不是一个很好的方法。如果能选取已存在的类，克隆它，然后对这个克隆增加和修改，则是再好不过的事情。这是继承（Inheritance）带来的好处，例外的情况是，如果原来的类（称之为基类、超类或父类）呗修改，则这个修改过的“克隆”（称为派生类、继承类或子类）也会表现出这些改变。

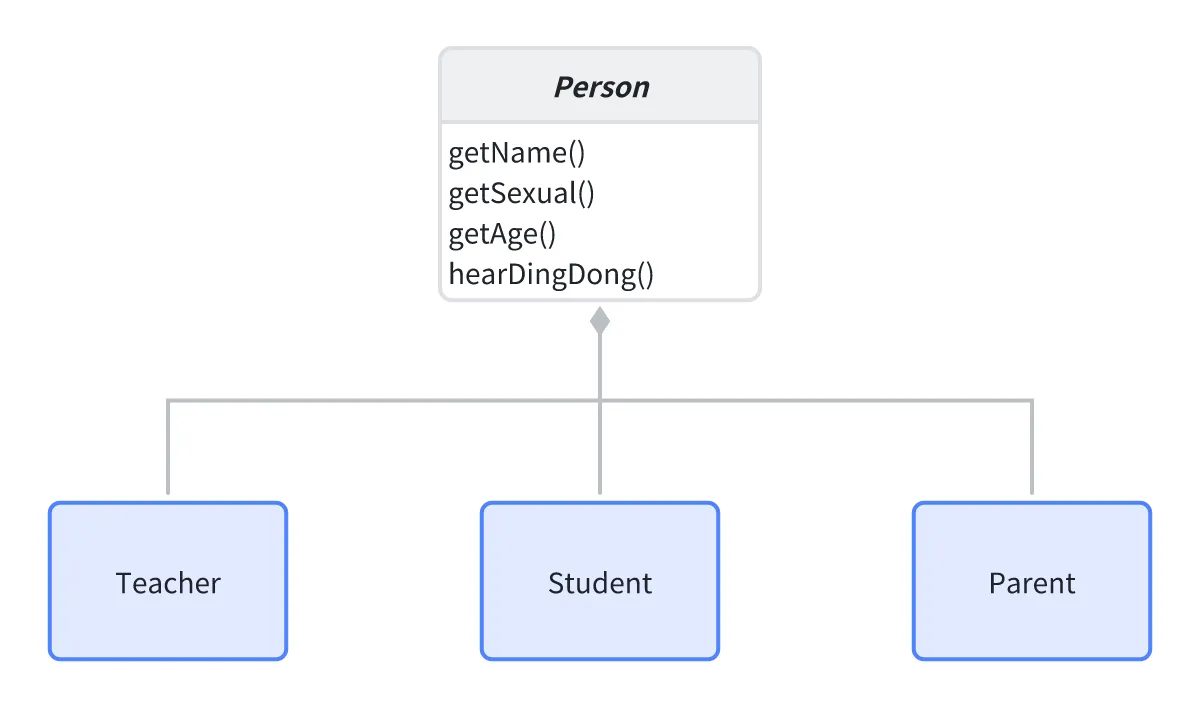

在上面的UML图片中，我们可以发现，箭头从派生类指向基类。正如你看到的，可以有多个派生类。

is-a是一种继承关系，重用接口，假设Teacher在听到上课铃后，更具体的有些教师会去上课，有些则是在办公室呆着。而Student在听到上课铃声后，会回到自己的班级去，而Parent听到铃声，只有到周五或者周六最后一节课才会知晓Student放学了；

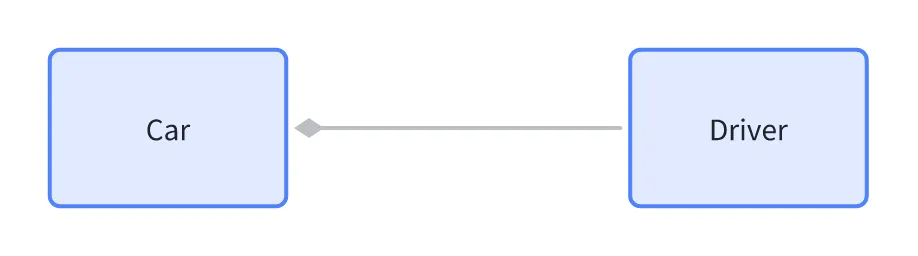

而has-a是一种组合关系，就是类包裹类，也称作聚合（Aggregation），通过组合得到新类所希望的功能。因为这是由于已经存在的类组成新类，所以称为组成组合关系，比如“在小汽车中有发动机”一样。

组合带来很大的灵活性，新类的成员对象通常是私有的，使用这个类的客户程序员不能访问它们。这种特点允许我们改变这些成员而不会干扰已存在的客户代码。我们还可以在运行时改变这些成员对象，动态地改变程序的行为。但是继承没有这种灵活性，因为编译器必须在用类继承方法创造的类上加入编译时限制。

因为继承在面向对象的程序设计中很重要，所以它常常得到高度重视，并且新程序员可能会产生在任何地方都是用继承的相关法。这回形成笨拙和极度复杂的涉及。实际上，当创建新类时，程序员应当首先考察组合，因为它更简单和更灵活。如果采用组合的方法，设计将变得清晰。一旦我们具备一些经验之后，就很能明显地知道什么时候需要采用继承方法。

2.1 Basic Concepts and Advantages of Class Templates#

Class templates allow us to define a generic class blueprint.

• Advantages:
  • Code Reusability: Write code once for multiple types.
  • Type Safety: The compiler performs type checking at compile time.
  • Flexibility and Versatility: Easy to create general-purpose containers or algorithms applicable to different data structures.

2.2 Definition and Instantiation of Class Templates#

• Definition Syntax:

  template <typename T> // Or template <class T>
  class ClassName {
      // Class definition using T as a generic type
  private:
      T member;
  public:
      ClassName(T val) : member(val) {}
      T getMember() const { return member; }
  };

• Member Function Definition Outside the Class:

  template <typename T>
  T ClassName<T>::getMember() const {
      return member;
  }

NOTE

注意，在类外定义模板类的成员函数时，需要在函数定义前加上 template <typename T>，并且类名后需要跟上 <T>。

• Instantiation: When we create an object of a template class using a specific type, it’s called instantiation.

  ClassName<int> intObject(10);
  ClassName<double> doubleObject(20.5);
  // std::cout << intObject.getMember() << std::endl;
  // std::cout << doubleObject.getMember() << std::endl;

  Matrix<int> m; makes Matrix<int> the name of a new class.

2.3 Multiple Template Parameters#

Class templates can have multiple type parameters.

template <typename T1, typename T2>
class Pair {
public:
    T1 key;
    T2 value;
    Pair(T1 k, T2 v) : key(k), value(v) {}
    void display() {
        // std::cout << "Key: " << key << ", Value: " << value << std::endl;
    }
};

// Pair<std::string, int> p1("Age", 30);
// p1.display();

2.4 Non-Type Template Parameters#

Class templates can accept not only types as parameters but also non-type parameters, such as integral constants, pointers, references, etc. These parameters must be compile-time constants.

template <typename T, size_t SIZE>
class Array {
private:
    T arr[SIZE]; // SIZE is a compile-time constant
public:
    void insert() { /* ... */ }
    void display() { /* ... */ }
    // ...
};

// Array<int, 10> intArray; // Creates an Array object containing 10 integers

Non-type template parameters can be strings, constant expressions, and built-in types.

2.5 Default Template Parameters#

Default values can be provided for template parameters.

template <typename T, typename U, typename V = char>
class MultipleParameters {
private:
    T var1;
    U var2;
    V var3;
public:
    MultipleParameters(T v1, U v2, V v3) : var1(v1), var2(v2), var3(v3) {}
    // ...
};

// MultipleParameters<int, double> obj1(7, 7.7, 'c'); // V uses default value char
// MultipleParameters<double, char, bool> obj2(8.8, 'a', false); // V is specified as bool

3.1 Complete Specialization#

When all template parameters are specified as concrete types, it’s called a complete specialization.

// Primary template
template <typename Z>
class Test {
public:
    Test() { /* std::cout << "It is a General template object\n"; */ }
};

// Complete specialization for int type
template <>
class Test<int> {
public:
    Test() { /* std::cout << "It is a Specialized template object for int\n"; */ }
};

// Test<char> q; // Uses the general template
// Test<int> p;  // Uses the int specialization

NOTE

假设我们有一个模板类用于存储和打印值：

template <typename T>
class Print {
public:
    void print(T value) {
        std::cout << value << std::endl;
    }
};

现在，我们希望为std::string类型提供一个特殊的实现，打印时加上引号：

#include <iostream>
#include <string>

template <typename T>
class Print {
public:
    void print(T value) {
        std::cout << value << std::endl;
    }
};

// 全特化
template <>
class Print<std::string> {
public:
    void print(const std::string& value) {
        std::cout << "\"" << value << "\"" << std::endl;
    }
};

int main() {
    Print<int> p1;
    p1.print(42);  // 调用普通模板类

    Print<std::string> p2;
    p2.print("Hello, World!");  // 调用全特化版本
    return 0;
}

输出结果：

42
"Hello, World!"

3.2 Partial Specialization#

When only some of the template parameters are specialized, or when a specialization is made for a characteristic of a parameter (like being a pointer or reference), it’s called partial specialization. The result of a partial specialization is still a template.

Case 1: Multiple type parameters, some specialized

// Primary template
template <typename T1, typename T2>
class Data {
public:
    Data(T1 m, T2 n) { /* ... */ }
    void display() { /* ... */ }
};

// Partial specialization: when T2 is char
template <typename T1>
class Data<T1, char> {
public:
    Data(T1 m, char c) { /* ... */ }
    void display() { /* ... */ }
};

Case 2: Partial specialization for pointer types

// Primary template
template <typename T>
class Bag {
    T elem;
    // ...
public:
    void add(T t) { /* ... */ }
};

// Partial specialization: when T is a pointer type T*
template <typename T>
class Bag<T*> {
    T* elem; // Stores a pointer
    // ...
public:
    void add(T* t) { // Parameter is a pointer
        // Could store the pointer itself, or dereference and store the value
        // The slide example stores the dereferenced value
        if (t != nullptr) {
            // elem[size++] = *t; // Assuming elem is an array of T
        }
    }
};

The Bag<T*> example from the slides demonstrates that if the template argument is T* (a pointer), the add method takes a T* and internally stores the value pointed to by dereferencing *t. Without partial specialization, only the pointers themselves would be added.

NOTE

假设我们有一个模板类用于存储两个值，现在希望为第二个参数为int时提供特殊实现：

#include <iostream>
#include <string>

template <typename T, typename U>
class Pair {
public:
    T first;
    U second;

    void print() {
        std::cout << first << ", " << second << std::endl;
    }
};

// 偏特化
template <typename T>
class Pair<T, int> {
public:
    T first;
    int second;

    void print() {
        std::cout << first << " (int) " << second << std::endl;
    }
};

int main() {
    Pair<std::string, double> p1{"Hello", 3.14};
    p1.print();  // 调用普通模板类

    Pair<std::string, int> p2{"World", 42};
    p2.print();  // 调用偏特化版本
    return 0;
}

输出结果：

Hello, 3.14
World (int) 42

3.3 Differences Between Function Template Specialization and Class Template Specialization#

template <>
return_type function_name<specific_type>(parameter_list);

4.1 Template Definition Location#

Class templates and their member function templates should generally be declared and defined in header files (.h or .hpp). This is because the compiler needs to see the full definition of the template when it instantiates it.

4.2 Template vs. Inheritance#

• Templates: Used to generate a set of classes where the object type does not affect the functional behavior of the class (i.e., the algorithm is generic, only the data type it operates on differs). Focuses on algorithmic generality.
• Inheritance: Used for a set of classes where the object type does affect the functional behavior of the class (via virtual functions for polymorphism). Focuses on achieving different behaviors through a common interface.

Exercise 1#

The declarations of Point class and Line class are as follows. Implement the member functions of these two classes and then run the program to test the classes.

class Point {
private:
     double x, y;
public:
     Point(double newX, double newY);
     Point(const Point& p);
     double getX() const;
     double getY() const;
};

class Line {
private:
     Point p1, p2; // Composition: Line class contains two Point objects
     double distance;
public:
     Line(Point xp1, Point xp2);
     Line(const Line& q);
     double getDistance() const;
};

// main function test code
int main() {
      Point a(8, 9),b(1,2);
      Point c = a;
      // ... output coordinates of points a, b, c ...
      Line line1(a, b);
      // ... output distance of line1 ...
      Line line2(line1);
      // ... output distance of line2 ...
     return 0;
}

Hint: The constructor of Line needs to calculate the distance between the two points and store it in the distance member. Distance formula: sqrt((x2-x1)^2 + (y2-y1)^2).

Implement:

/**Point.h*/
#ifndef POINT_H
#define POINT_H
#include <iostream>
#include <cmath>

class Point {
private:
     double x, y;

 public:
     Point(double newX, double newY) ;

     Point(const Point& p);

     double getX() const;
     double getY() const;

};

class Line{
private:
     Point p1, p2;
     double distance;

public:
     Line(Point xp1, Point xp2);
     Line(const Line& q);
     double getDistance() const;
};

#endif // POINT_H

/**Point.cpp*/
#include "Point.h"

Point::Point(double newX, double newY) : x(newX), y(newY) {}
Point::Point(const Point& p) : x(p.x), y(p.y) {}
double Point::getX() const {
     return x;
}
double Point::getY() const {
     return y;
}

Line::Line(Point xp1, Point xp2) : p1(xp1), p2(xp2) {
     double dx = p2.getX() - p1.getX();
     double dy = p2.getY() - p1.getY();
     distance = sqrt(dx * dx + dy * dy);
}

Line::Line(const Line& q) : p1(q.p1), p2(q.p2), distance(q.distance) {}

double Line::getDistance() const {
     return distance;
}
/**main.cpp*/
#include <iostream>
#include <cmath>
#include "Point.h"

int main(){
     Point a(8, 9),b(1,2);
     Point c = a;
     std::cout << "point a: x = " << a.getX() << ", y = " << a.getY() << std::endl;
     std::cout << "point b: x = " << b.getX() << ", y = " << b.getY() << std::endl;
     std::cout << "point c: x = " << c.getX() << ", y = " << c.getY() << std::endl;

     std::cout << "------------------------------------------" << std::endl;
     Line line1(a, b);
     std::cout << "line1's distance:" << line1.getDistance() << std::endl;

     Line line2(line1);
     std::cout << "line2's distance:" << line2.getDistance() << std::endl;

     std::cout << "------------------------------------------" << std::endl;

     return 0;
}

Exercise 2#

A template class named Pair is defined as follows. Please implement the overloaded operator< which compares the value of the key. If this->key is smaller than p.key, return true. Then define a friend function to overload the << operator which displays the Pair’s data members. Finally, run the program. The output sample is as follows.

#include <iostream>
#include <string>
using namespace std;
template <class T1,class T2>
class Pair{
public:
    T1 key;
    T2 value;
    Pair(T1 k,T2 v):key(k),value(v) { };
    bool operator < (const Pair<T1,T2> & p) const;
};

int main(){

    Pair<string,int> one("Tom",19);
    Pair<string,int> two("Alice",20);

    if(one < two){
        cout << one;
    }
    else{
        cout << two;
    }

    return 0;
}

Implement:

#include <iostream>
#include <string>
using namespace std;
template <class T1,class T2>
class Pair{
public:
    T1 key;
    T2 value;
    Pair(T1 k,T2 v):key(k),value(v) { };
    bool operator < (const Pair<T1,T2> & p) const;

    // Declare the friend function for operator<<
    template <class U1, class U2>
    friend ostream& operator<<(ostream& os, const Pair<U1, U2>& p);
};

template <class T1,class T2>
bool Pair<T1,T2>::operator < (const Pair<T1,T2> & p) const {
    return key < p.key;
}

// Define the operator<< function
template <class T1, class T2>
ostream& operator<<(ostream& os, const Pair<T1, T2>& p) {
    os << "Key: " << p.key << ", Value: " << p.value << endl;
    return os;
}

int main(){

    Pair<string,int> one("Tom",19);
    Pair<string,int> two("Alice",20);

    if(one < two){
        cout << one;
    }
    else{
        cout << two;
    }

    return 0;
}

Exercise 3#

There is a definition of a template class Dictionary. Please write a template partial specialization for the Dictionary class where the Key is specified to be int. In this specialized version, add a member function named sort() which sorts the elements in the dictionary in ascending order (based on keys). Finally, run the program. The output sample is as follows.

template <class Key, class Value>
class Dictionary {
    Key* keys;
    Value* values;
    int size;
    int max_size;
public:
    Dictionary(int initial_size) :   size(0) {
        max_size = 1;
        while (initial_size >= max_size)
        max_size *= 2;
        keys = new Key[max_size];
        values = new Value[max_size];
    }
    void add(Key key, Value value) {
        Key* tmpKey;
        Value* tmpVal;
        if (size + 1 >= max_size) {
        max_size *= 2;
        tmpKey = new Key [max_size];
        tmpVal = new Value [max_size];
        for (int i = 0; i < size; i++) {
            tmpKey[i] = keys[i];
            tmpVal[i] = values[i];
        }
        tmpKey[size] = key;
        tmpVal[size] = value;
        delete[] keys;
        delete[] values;
        keys = tmpKey;
        values = tmpVal;
        }
        else {
        keys[size] = key;
        values[size] = value;
        }
        size++;
    }
    void print() {
        for (int i = 0; i < size; i++)
        cout << "{" << keys[i] << ", " << values[i] << "}" << endl;
    }

    ~Dictionary()
    {
        delete[] keys;
        delete[] values;
    }

};

int main() {
    Dictionary<const char*, const char*> dict(10);
    dict.print();
    dict.add("apple", "fruit");
    dict.add("banana", "fruit");
    dict.add("dog", "animal");
    dict.print();
    Dictionary<int, const char*> dict_specialized(10);
    dict_specialized.print();
    dict_specialized.add(100, "apple");
    dict_specialized.add(101, "banana");
    dict_specialized.add(103, "dog");
    dict_specialized.add(89, "cat");
    dict_specialized.print();
    dict_specialized.sort();
    cout << endl << "Sorted list:" << endl;
    dict_specialized.print();
    return 0;
}

Implement:

void sort(){
    for (int i=0;i<size-1;i++){
        for (int j=i+1;j<size;j++){
            if (keys[i] > keys[j]){
                Key tmpKey = keys[i];
                Value tmpVal = values[i];
                keys[i] = keys[j];
                values[i] = values[j];
                keys[j] = tmpKey;
                values[j] = tmpVal;
            }
        }
    }
}

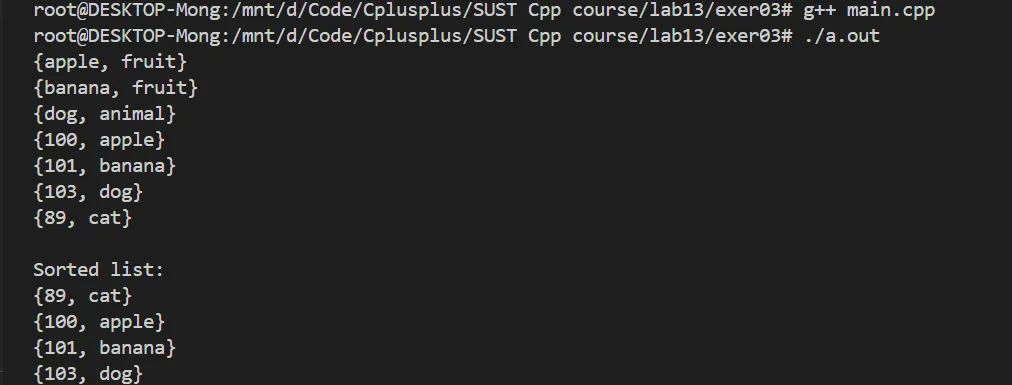

output:

CC BY NC SA (Content adapted from course materials)
